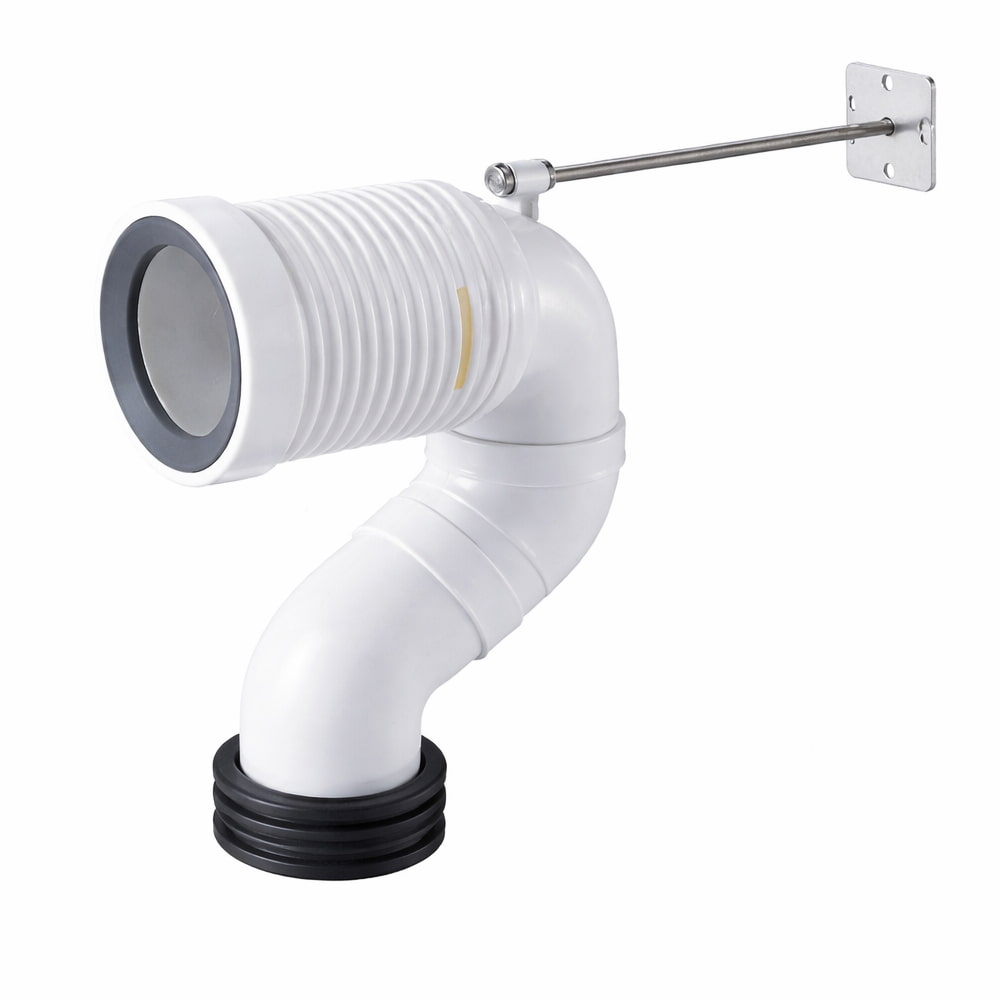

Long Reach Toilet Pan Connector PWG003

Adjustable toilet pan connector bend for converting a P-trap outlet to an S-trap set-out on 100mm waste. Long reach suits approx 150–260mm range (depending on pan design), trims down in 20mm steps, and can be cut to length. Supplied with connector and fixings. WaterMark approved to AS2887.

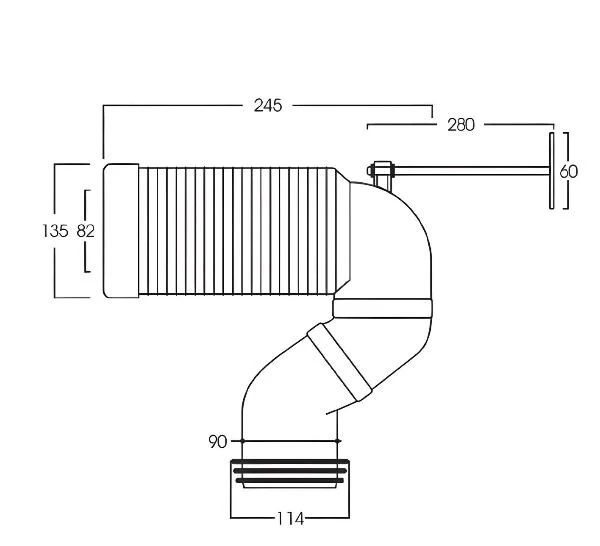

150–260mm Reach S-Trap Toilet Pan Connector.
Designed for extended set-outs where you need the most adjustment range, while still allowing cut-to-length fitting and 20mm step trimming.

Choosing the right reach length size.
Use the dropdown below to switch between Short (60–180mm), Medium (100–210mm) and Long (150–260mm). Not sure what will fit your pan? Ask us.
